current location：Home>Products>Optics>Mirror

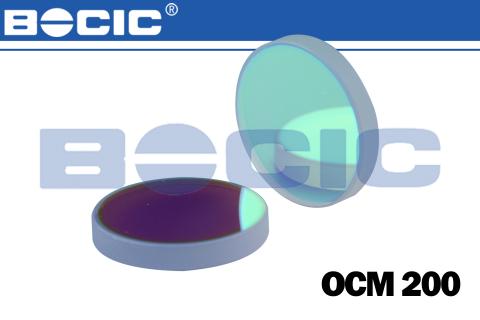

OCM200 series broadband dielectric mirror

    High Reflectivity, Ravg>99%, AOI 0-45deg

    Wide Working Band



  • description
  • parameters

OCM200 series broadband dielectric mirror




High Reflectivity, Ravg>99%, AOI 0-45deg

Wide Working Band


1. Material: K9 optical glass

2. Size Tolerance: +0.0/-0.2mm

3. Clear Aperture: ＞90%

4. Thickness Tolerance: ±0.2mm

5. Surface Figure: ＜ λ/4@632.8nm

6. Surface Quality: 60/40 scratch and dig

7. Coating: Dielectric HR coating on one surface, Ravg>99% for random polarization, AOI 0-45deg, rear surface ground or inspection polished

8. Damage Threshold: ＞1J/cm2, 20ns, 20Hz, @1064nm


Model

Size（mm）

Thickness(mm)

Wavelength(nm)

AOI(Deg)

OCM201

25.4

6.35

450 - 700

0 - 45

OCM202

25.4

6.35

650 - 1000

0 - 45

OCM203

25.4

6.35

1000 - 1400

0 - 45

OCM204

12.7

3

450 - 700

0 - 45

OCM205

50.8

6.35

450 - 700

0 - 45

OCM206

12.7

3

670 - 905

0 - 45

OCM207

50.8

6.35

670 - 905

0 - 45

OCM208

12.7

3

750 - 1100

0 - 45

OCM209

25.4

6.35

750 - 1100

0 - 45

OCM210

50.8

6.35

750 - 1100

0 - 45

OCM211

12.7

3

1480 - 1550

0 - 45

OCM212

25.4

6.35

1480 - 1550

0 - 45

OCM213

50.8

6.35

1480 - 1550

0 - 45

OCM214

12.7

3

350 - 400

0 - 45

OCM215

25.4

6.35

350 - 400

0 - 45

OCM216

50.8

6.35

350 - 400

0 - 45
