current location：Home>Products>Optics Mounts Series>Base Plates

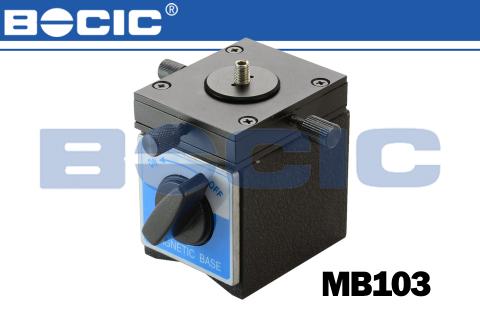

MB103 magnetic bases

    1. Can be used for two dimensional translation adjustment and locking

    2. M4×0.3 fine thread screw adjustment

    3. Combined with the rotating rod rack or lifting rod rack assembly ,It can realize three-dimensional adjustment

  • description
  • parameters

MB103 magnetic bases




1. Can be used for two dimensional translation adjustment and locking

2. M4×0.3 fine thread screw adjustment

3. Combined with the rotating rod rack or lifting rod rack assembly ,It can realize three-dimensional adjustment

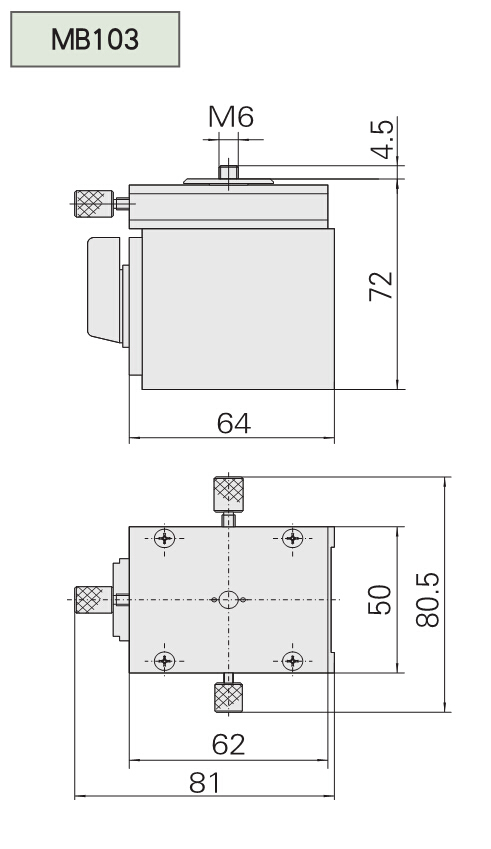

Model

MB103

Adjusting range（mm）

Tx

±2

Ty

±2

Adsorption forces（kg）

60

Loading capacity（kg）

5

Weight（kg）

1.1
