current location：Home>Products>Optics Mounts Series>Fiber Optomechanics

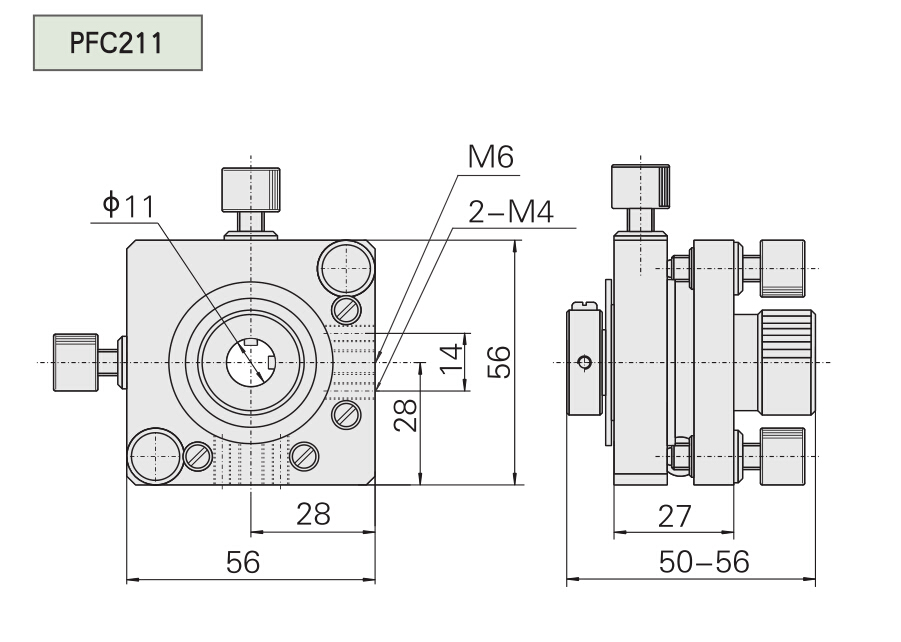

    PFC211 precision fiber coupler

      1. Five axis adjustment

      2. Tx driving by hand wheel , M6×0.25 fine thread screw driving other four axis

    • description
    • parameters

    PFC211 precision fiber coupler



    1. Five axis adjustment

    2. Tx driving by hand wheel , M6×0.25 fine thread screw driving other four axis



    Model

    PFC211

    Applied diameter（mm）

    ≤φ11

    Adjusting range of translation（mm）

    Tx

    6

    Ty

    ±2

    Tz

    ±2

    Adjusting range of tilt

    θy

    ±4°

    θz

    ±4°

    Weight（kg）

    0.3
