current location：Home>Products>Manual Positioners>Multi-axis Stages

TMS110 series multi-axis positioning stages

    1.Actuated withcrossroller bearing guides, allowing forreliable movement and high precision.

    2.Driven withmicrometer head.

    3.Resetspringeliminates return backlash.

    4.Separate models are available for right-hand and left-hand use.


  • description
  • parameters

TMS110 series multi-axis positioning stages



1.Actuated withcrossroller bearing guides, allowing forreliable movement and high precision.

2.Driven withmicrometer head.

3.Resetspringeliminates return backlash.

4.Separate models are available for right-hand and left-hand use.

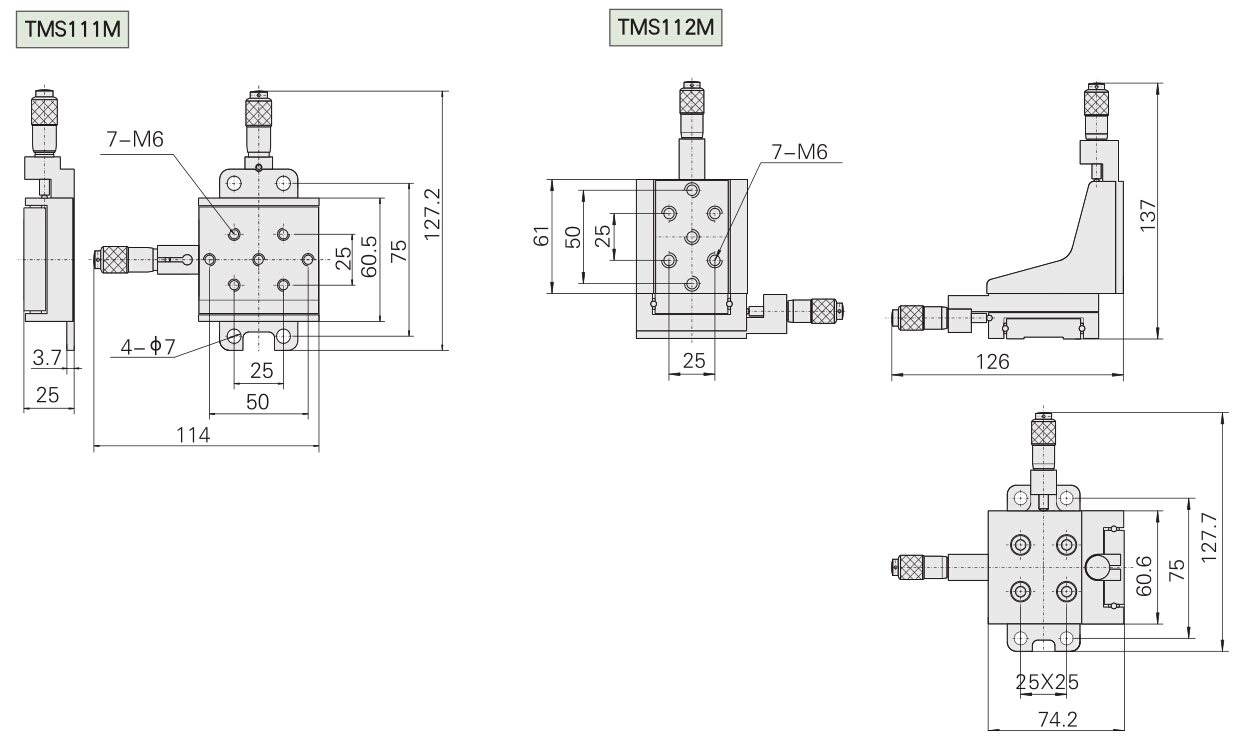

Model

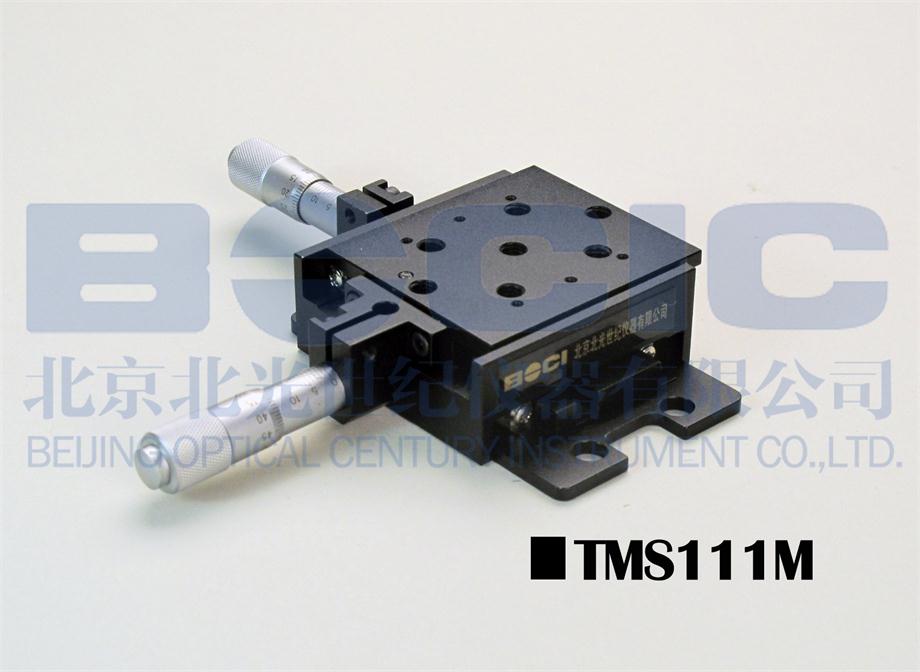

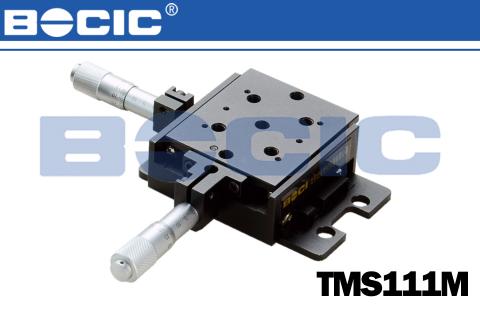

TMS111M

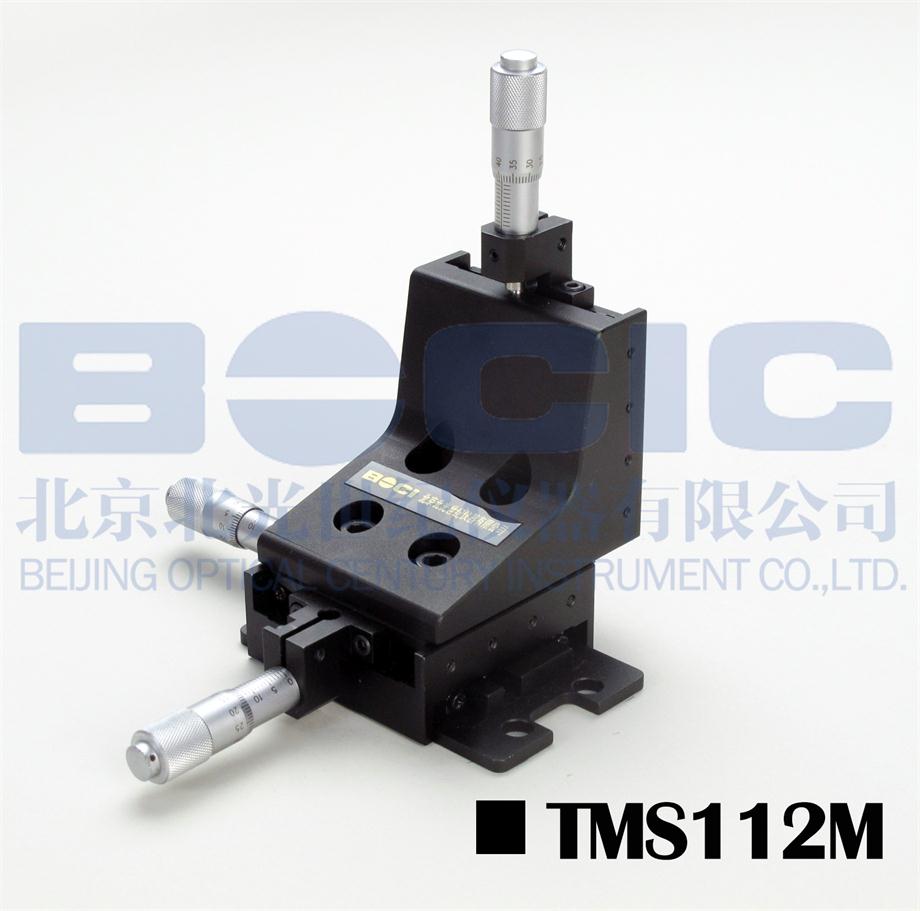

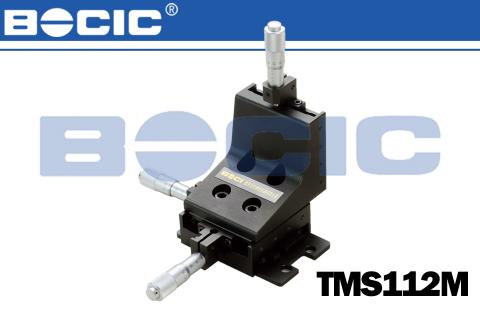

TMS112M

Axles

XY two axles

XYZ three axles

Travel （mm）

13

Driving

micrometer head

Minimum reading（mm）

0.01

Resolution（mm）

0.002

Error of swing

＜22″

Loading capacity (kg)

5

2.5

Weight （kg）

0.75

1.15
